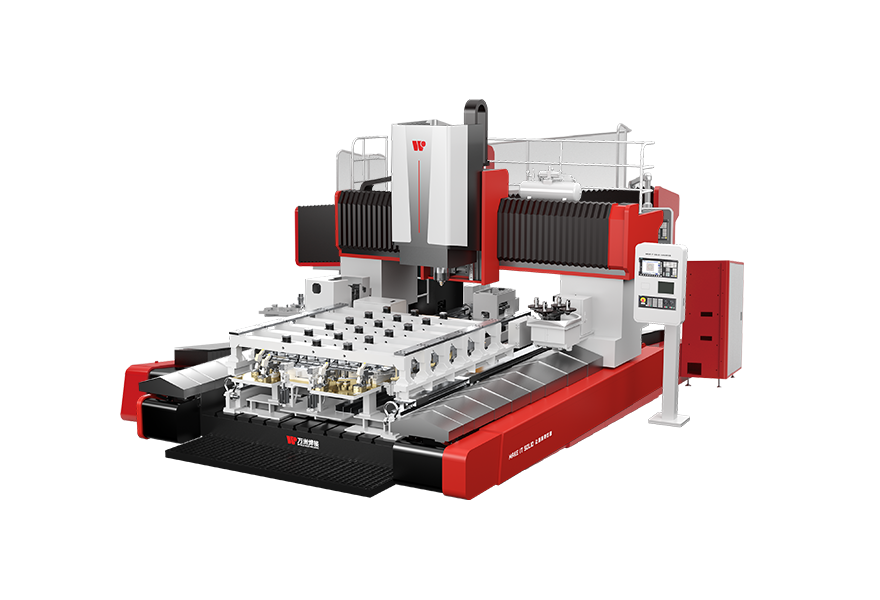

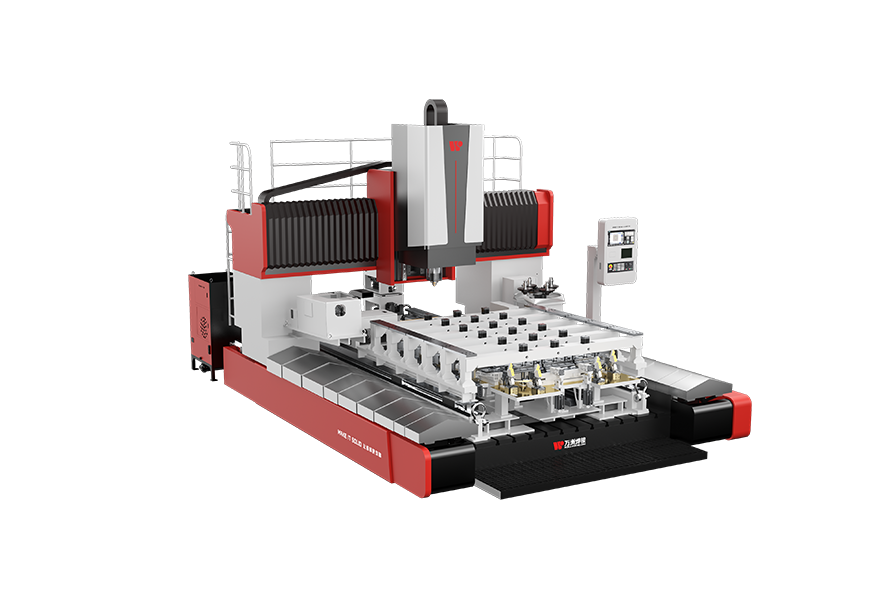

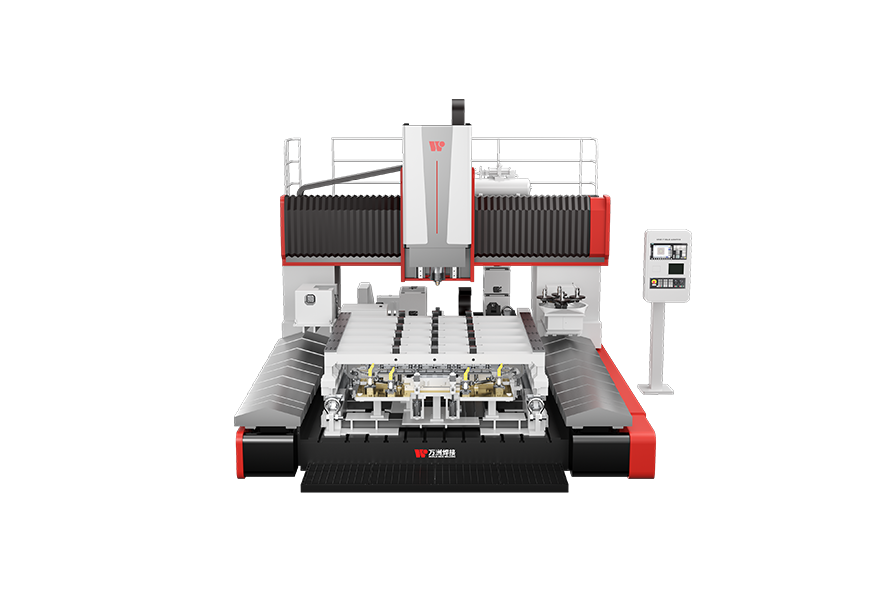

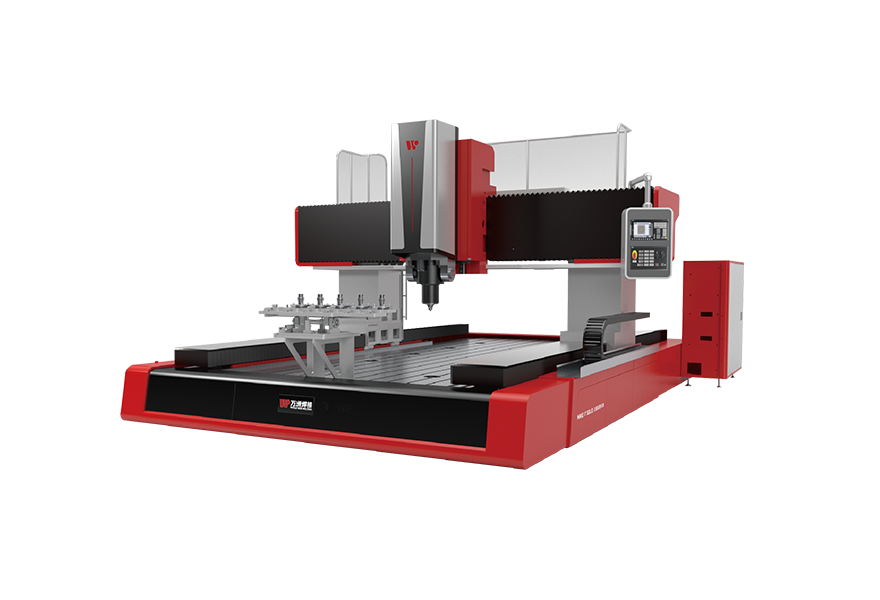

FSWMG1. Product Advantages
● High Load Capacity
This machine adopts a better design of the structure and locally strengthens key components. Equipped with a stationary workbench, it can withstand higher loads. Moreover, this design reduces the inertial impact caused by the heavy weight of the X-axis, improves the stability of the welding process, and increases the service life of the equipment.
● High adaptability
This machine with a high-performance spindle is suitable for welding non-ferrous metals and their dissimilar materials. It has an Automatic Tool Changing Device to replace tools in lines continuously.
● High intelligence
Implemented visual tracking of process data.
● High convenience
In response to the reequipment of automated production lines, online stationary shoulder automatic welding tools changing, online grinding, and online probe length detecting have been achieved.
● Customization
Customization services for equipment and tooling can be provided according to product requirements.
● One-stop turnkey service
Provide one-stop turnkey services from scheme planning, equipment manufacturing, and product debugging to process training.
2.Basic Parameter
| Model | FSWG-2518M | WZ-FSWG-3026ML (Mechanical Spindle) | WZ-FSWG-3026ML-ESP (Motor Spindle) | ||||
| Structure | Axis-Moving Gantry | ||||||
| Welding force/t | 3 | 6 | 3 | 6 | 3 | ||
| Maximum welding depth(Aluminum alloy)/mm | 8 | 16 | 8 | 16 | 10 | ||
| Maximum welding depth(Copper)/mm | 4 | 8 | 4 | 8 | 4 | 8 | |
| Control system | Siemens 828D | ||||||
| Through width/mm | 2300 | 2600 | 2600 | ||||
| Through width/m㎡ | 2600*2400 | 6000*2600 | 6000*2600 | ||||
| Demension/mm | L | 5900 | 7400 | 7400 | |||
| W | 4100 | 4300 | 4300 | ||||
| H | 3500 | 3800 | 3800 | ||||
| Working stroke | X*Y | 6000*1800 | 3000*2600 | 3000*2600 | |||
| Mm | Z | 500 or Customized | |||||
| Fast-Moving speed mm/min | X | 10000 | 13000 | 13000 | |||
| Y | 10000 | 13000 | 13000 | ||||
| Z | 6000 | 6000 | 6000 | ||||
| Maximum rotation/rpm | 4000 | 3000 | 4000 | 3000 | 7000 | ||
| Z-axis welding space/mm | 500(450-950) | 500/700 or Customized | |||||
| Adjustable range of B axis inclination Angle | -5°~5° manual adjustment | ||||||
| Adjustable range of C axis inclination Angle | n×360° automatic adjustment | ±360° automatic adjustment | |||||
| Repeated positioning of each axis/mm | 0.02/300 | ||||||
| Welding flexible improving scheme | Standard | Force Control System, Probe Length Detection Device, Electronic Constant Temperature Control System | |||||
| Optional | Stationary shoulder system, Automatic Tool Changing Device, TPDA System, Welding tools monitoring system, Leading roller system, Static Shoulder Automatic Cleaning Device | ||||||
| Total weight/t | 15.5 | 28 | |||||
