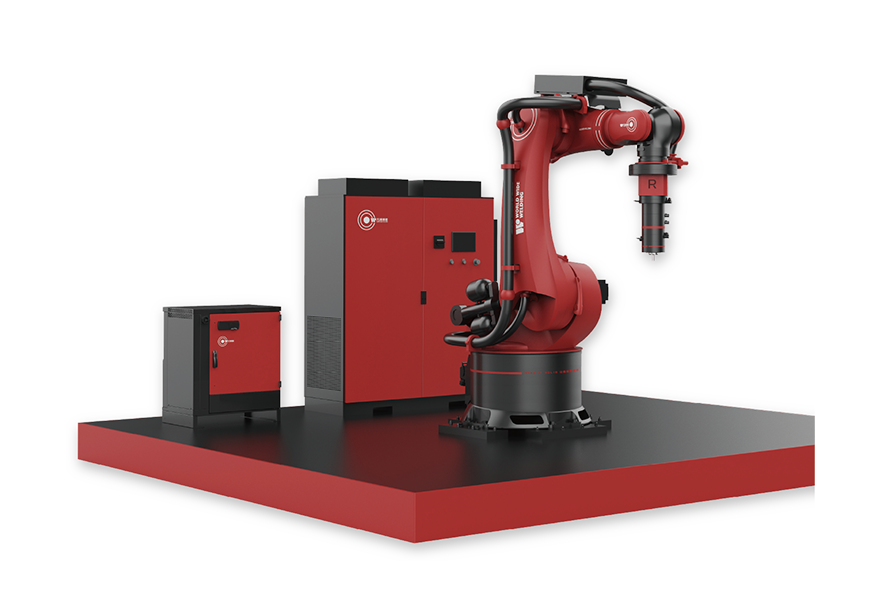

RFSSW

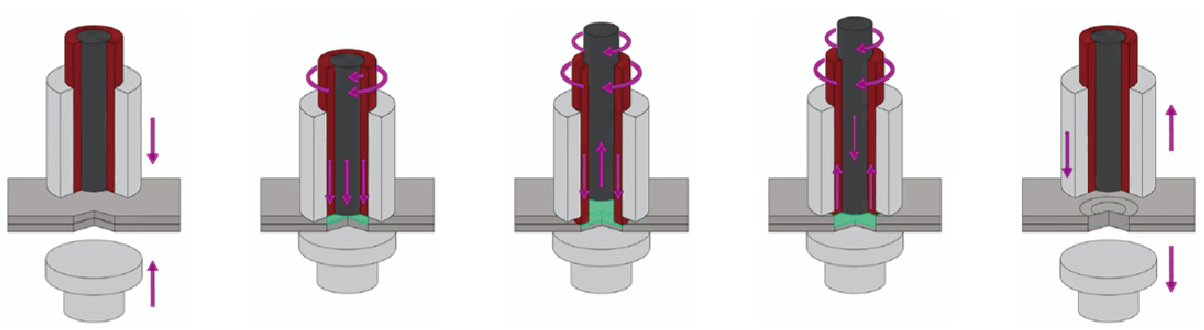

Schematic diagram of RFSSW

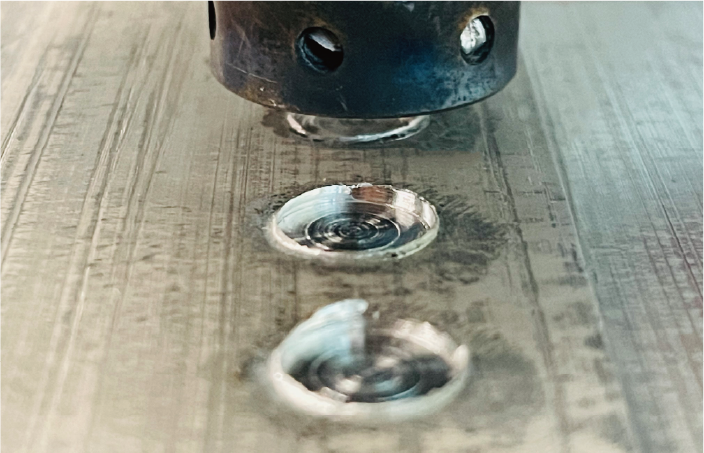

Macro morphology of RFSSW
1. Technical Features
● No key-hole
By retracting and refilling welding tools, there is no key-hole after welding, and the joint has high performance.
● High rotating speed
The maximum rotational speed is 5000rpm, which can achieve a maximum downward insert speed of 5mm/s.
● High flexibility
By using a six-axis heavy load robot, three-dimensional spot welding can be realized.
● Automatic changing the welding tools
Adopting hydraulic structure, it can automatically change welding tools.

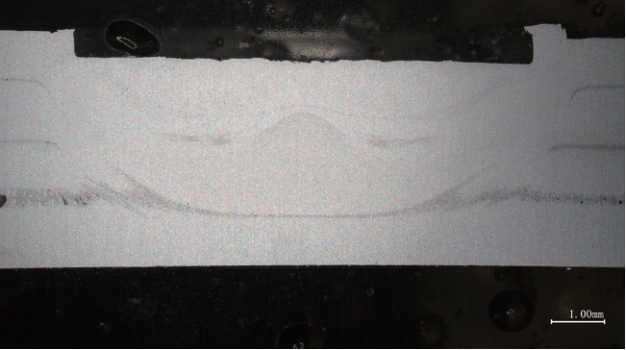

Overlapping joint with thicker plate of 0.8mm

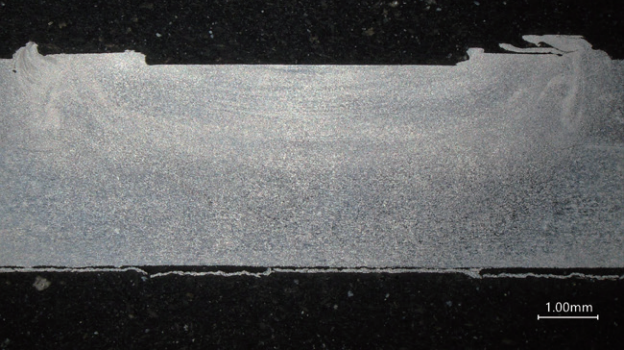

Overlapping joint with thicker plate of 1.5mm

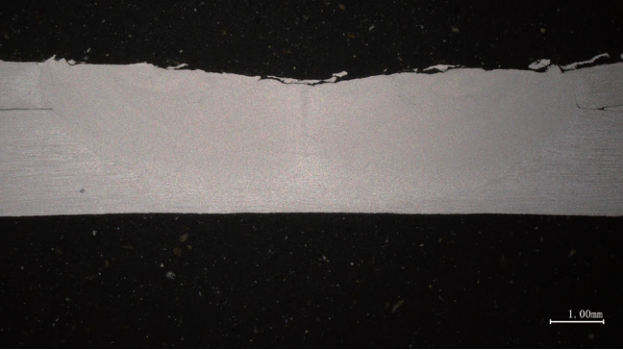

Multi-layer board lap joint
2. Product Applications
This equipment is suitable for welding and repairing products such as new energy vehicle battery trays, car doors, pillars of car, battery cell and rocket fuel tanks.
 |  |

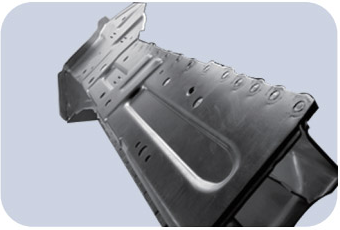

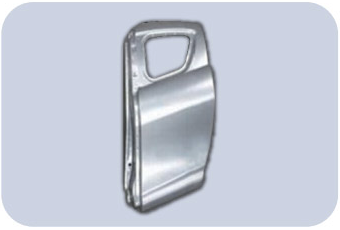

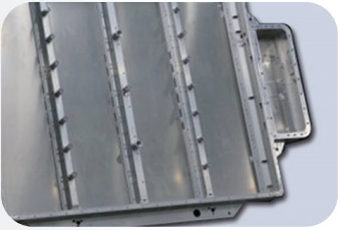

| New-energy vehicle battery tray | Car doors |
 |  |

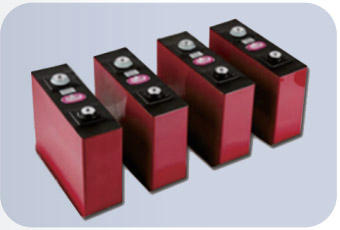

| Battery cell | Pillars of car |
 |  |

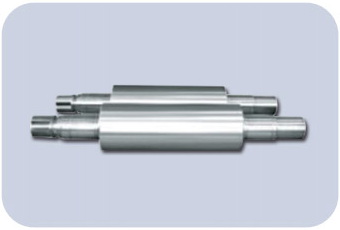

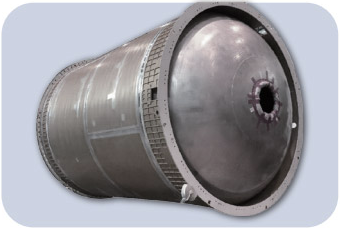

| Rocket fuel tanks | Roll reclamation |
3. Basic Parameters
| Control mode | Force Control |
| The clamping method of welding tools | Automatic clamping |
| Rated speed | 2500 rpm |
| Maximum speed | 5000 rpm |
| Rated torque | 57.3N·m |
| Maximum torque | 68.7N·m |
| Insert/refill speed | 0~5mm/s |
| Shoulder stroke | -10~+10mm |
| Pin stroke | -10~+10mm |
| Pressure control range | 0~5000N |
| Working range | R2826mm |
