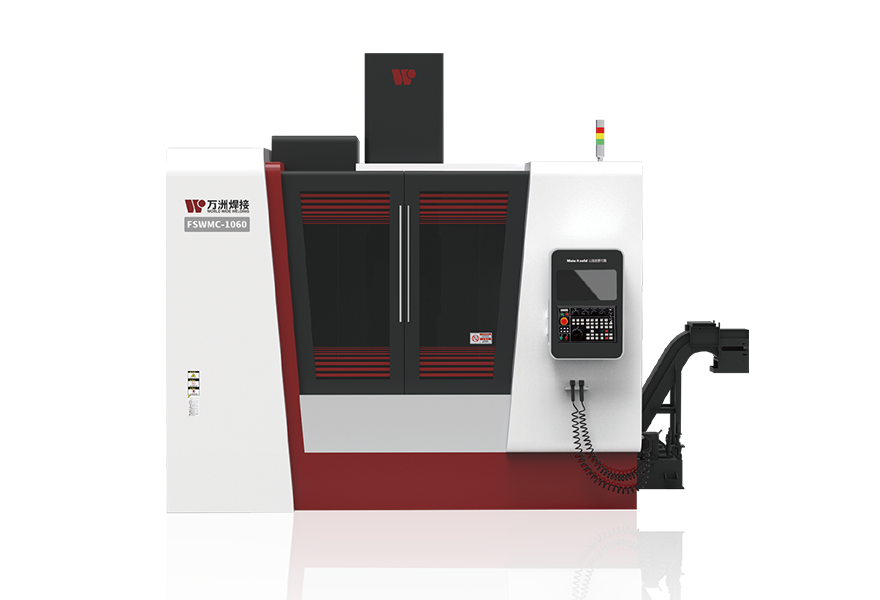

1. Product Advantages

● Integration of Friction Stir Welding and Machining
The integration of welding and machining can be realized by combining the functions of CNC including milling, drilling, grooving etc.

● High rigidity configuration
Based on high rigidity and heavy duty machine base, the machine ensures the rigid requirements of welding and milling.

● Welding speed increasing
High welding speed 50-150%。 Compared with conventional gantry FSW equipment, welding speed can be increased by 50-150%.

● High-speed spindle
Adopting high speed spindles from well-known Taiwanese brands, with a maximum speed of up to 10000rpm.

● Higher Load
With hard rail design, Z axis can withstand much higher load.

● Convenient operation
With mature FANUC numerical control system, it is easy to operate.

● Automatic tool change
Automatic switching between cutting tool and welding tool can be realized.

Welding

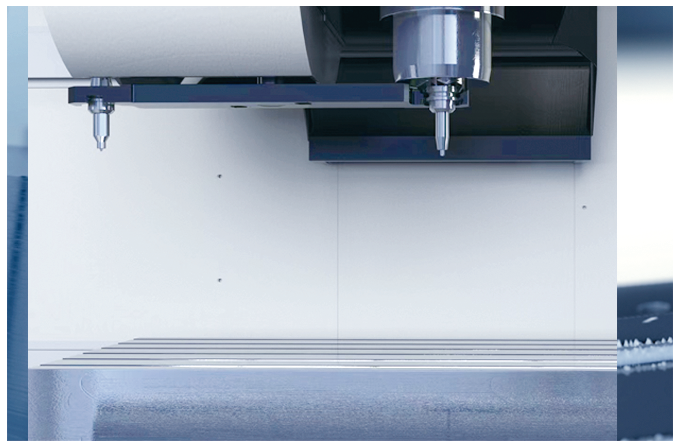

Automatic tool change

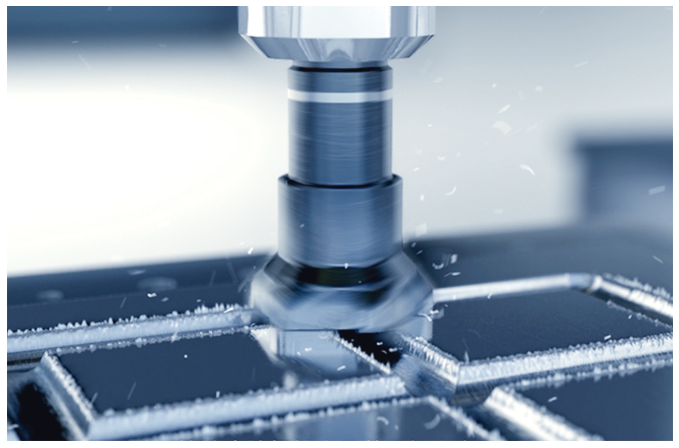

Milling

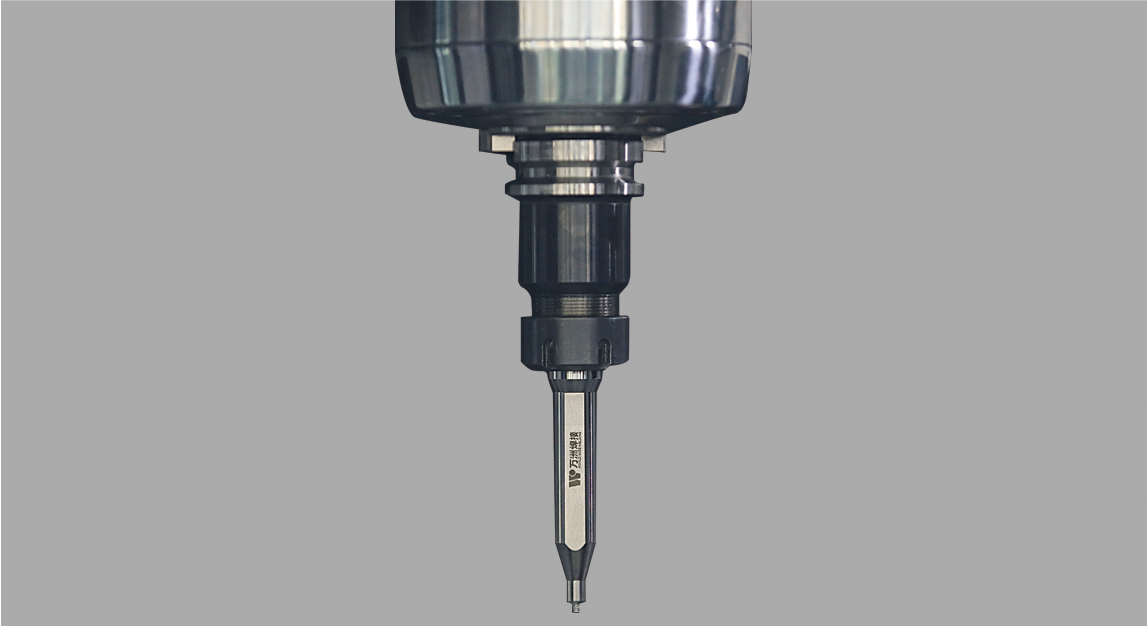

2. FSW Tools

Optional welding depth: 1-8mm.
High strength: The strength of the welded joint can reach over 70% of the base material.
Stable tool lifespan: weld length up to 1500m for one change (3mm aluminum alloy).
High efficiency: welding speed can Reach 3m/min.
Fast delivery: Deliver on the same day of ordering.
Customized service: customized FSW tools according to requirements。

3. Product Applications

The machine is suitable for welding products in industries such as new energy vehicles, 5G communication and power electronics.

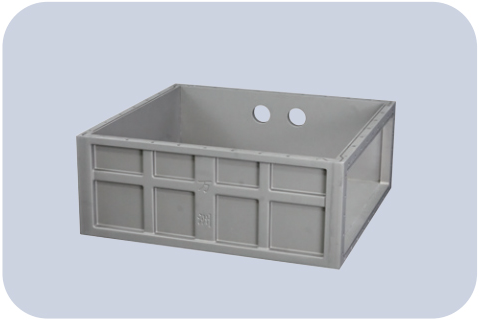

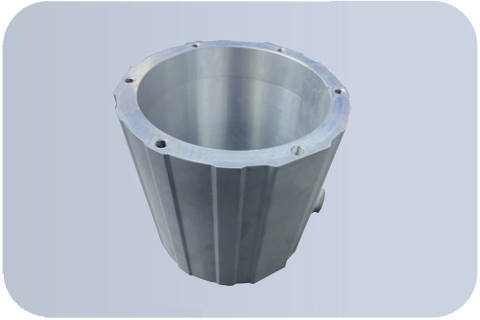

Motor housing	HFCV electric reactor housing

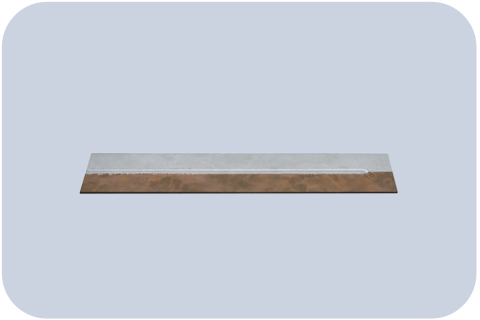

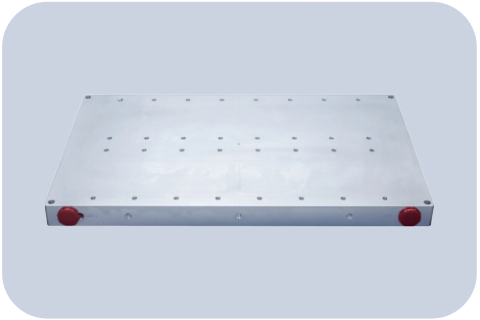

Cooling plate	Ai/Cu busbar

4. Basic Parameter
