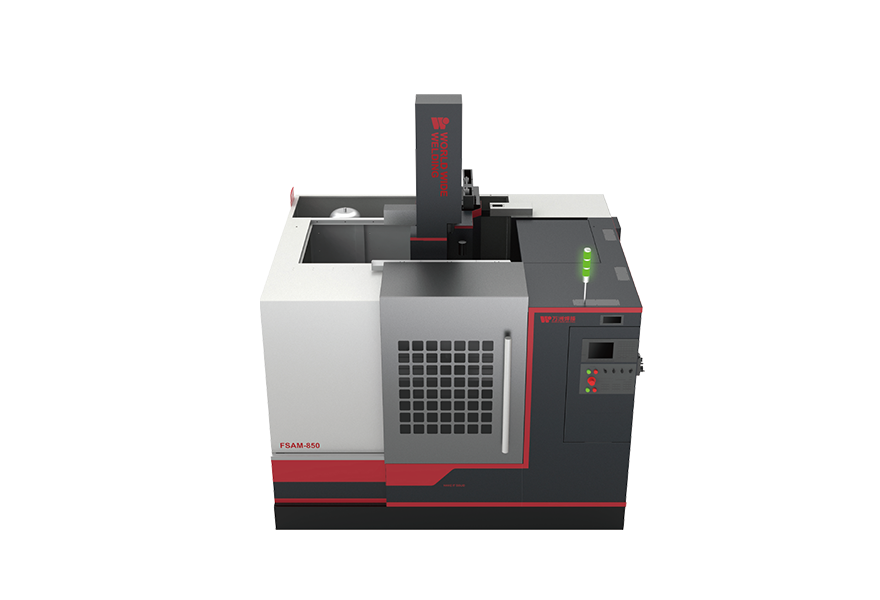

Friction Stir Additive Manufacturing Machine
Based on solid-phase additive manufacturing technology, WWW has developed the Derict- driven Friction Stir Additive Manufacturing Machine with independent intellectual property rights. Coupled with exclusive reverse-driven additive manufacturing molds, it enables efficient additive manufacturing and repair of alloys such as aluminum, magnesium, and copper.

1. Product Advantages

● High efficiency
The additive manufacturing Speed can reach an output of above 3 liters per hour, more than ten times that of the laser additive manufacturing process.

● High performance
Avoiding material melting, better mechanical properties, lower residual stress.

● Large size
Open working space, larger size parts processing machine can be customized.

● High adaptability
It can be applied to the deposition of metals such as aluminum, magnesium, and copper.

● Customization
Non-standard customization is available for parts of different sizes.

● Technical service support
Provide customers with efficient and professional services, such as equipment maintenance, product debugging, and process training.


2. Product Applications

The machine is suitable for additive manufacturing and repair of products in aerospace, military, automotive, pressure vessels and other industries.

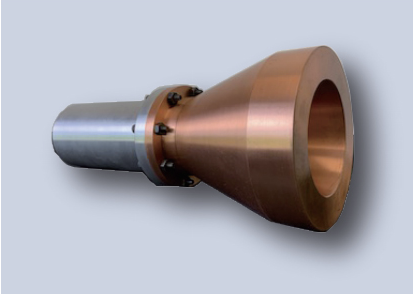

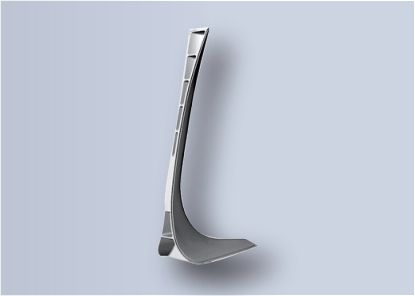

The spine of the shipPressure vessel connectors

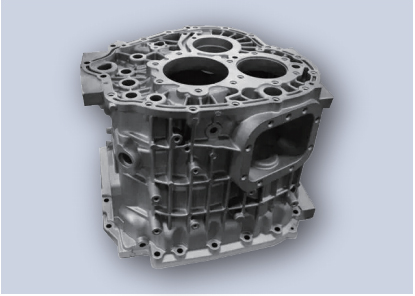

Engine housingA radar base

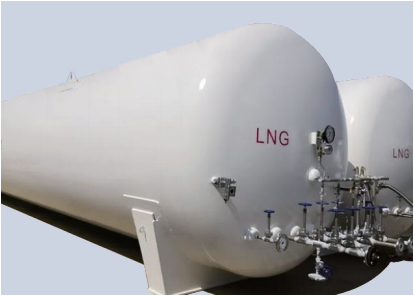

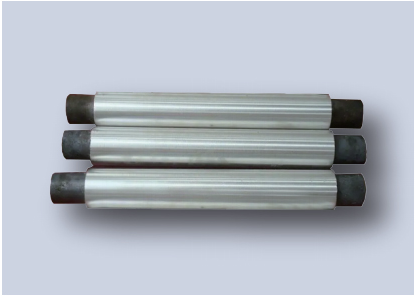

Pressure vessel transition jointStorage tank


3. Basic Parameters

ModelWZ-FSAM-850
MaterialAluminum, magnesium, copper
Efficiency3L/h
Machine Dimension 2700mm*2250mm*3500mm
Table size800mm*500mm
Max. loading for the working table 500kg
Stroke X 800mm*500mm
 Y500mm
 Z500mm
Maximum rotation speed  6000rpm
Machine net weight8t
